Yes, it’s possible! Tested on Windows Server 2016.

LDAPS Certificates are always be a little mistery for me. When you search on google you always find big guides that spoke about install the CA authority and deploy certificates.
I have finaly understand that this is not necessary, and as I suspected LDAPS works like any other services exposed trought SSL certificates, like https.

The first mistery was where certificate of LDAPS services was stored, there:

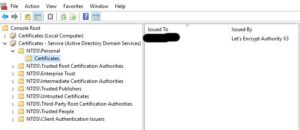

mmc.exe -> File add snap-in -> Certificates -> Service account -> Local computer -> Active Directory Domain Services

Active Directory Domain Services also called NTDS

You can now load Certificate on NTDS\Personal\Ceterificates and Active Directory LDAPS use it automatically after reboot or with a special command.

That is, easy, finaly.

And for Let’s Encrypt? Now…:

As the place where LDAPS cert store it’s not so “easy” to find, also doesn’t exit the powershell command to import certificate to the NTDS/Personal Store, so you need to import to Local Computer and after move it from registry (yes, absurd but working…).

powershell ldaps-cert.ps1 that download Let’s Encrypt exported certificate and call import-ntds.ps1 for load on Local Computer certificate store and after move it to NTDS Store:

Start-Transcript -path log.txt -append
Get-Date -Format "dddd MM/dd/yyyy HH:mm K"
$cur = Get-Location
Write-Host  $cur
Invoke-WebRequest "[URL_TO_DOWNLOAD_CERTIFICATE_PFX]" -OutFile "donwload.pfx" -PassThru
Start-Sleep -Milliseconds 500
$cert = "$cur\download.pfx"
Write-Host  $cert
.\import-ntds2.ps1 $cert [EXPORT PASSWORD]
Start-Sleep -Milliseconds 1500
ldifde -i -f ldaps-reload.txt

powershell import-ntds2.ps1 called by ldaps-cert.ps1:

using namespace System.Security
	param (
		[parameter(mandatory=$true)] [string] $CertificateFile,
		[parameter(mandatory=$true)] [string] $PrivateKeyPassword
	# Setup certificate
	$Flags = [Cryptography.X509Certificates.X509KeyStorageFlags]::MachineKeySet `
		-bor [Cryptography.X509Certificates.X509KeyStorageFlags]::PersistKeySet `
		-bor [Cryptography.X509Certificates.X509KeyStorageFlags]::Exportable
	$Certificate = New-Object Cryptography.X509Certificates.X509Certificate2($CertificateFile, $PrivateKeyPassword, $Flags)
	# Install certificate into machine store
	$Store = New-Object Cryptography.X509Certificates.X509Store(
	Write-Host $Certificate.thumbprint
	$thumbprint = $Certificate.thumbprint
	$copyParameters = @{
	'Path' = "HKLM:\Software\Microsoft\SystemCertificates\MY\Certificates\$thumbprint"
	'Destination' = "HKLM:\SOFTWARE\Microsoft\Cryptography\Services\NTDS\SystemCertificates\My\Certificates\$thumbprint"
	'Recurse' = $true
	Copy-Item @copyParameters

I have tested that LDAPS Service use always the last added certificate (or the “longer” expire), so it’s not a problem if there are old certificates on the NTDS store.
Add a schedule task that every week launch ldaps-cert.ps1 and the LDAPS cert will be always up to date.

The last part: generating the pfx from a machine with a let’s encrypt working configuration (maybe a linux with apache and https correctly configured), ldaps-cert.ps1 will download from it:

/usr/bin/openssl pkcs12 -export -passout pass:[PASSWORD} -out /var/www/html/export/download.pfx -inkey /etc/letsencrypt/live/[DOMAIN]/privkey.pem  -in /etc/letsencrypt/live/[DOMAIN]/fullchain.pem
chmod 644 /var/www/html/export/*.pfx

Add a cronjob that every week will generate the pfx updated certificate.

Test ssl connection with openssl comands:

openssl s_client -connect [ADLDAPS_PUBLIC_DOMAIN]:636 -showcerts
depth=2 O = Digital Signature Trust Co., CN = DST Root CA X3
verify return:1
depth=1 C = US, O = Let's Encrypt, CN = Let's Encrypt Authority X3
verify return:1
depth=0 CN = [YOUR DOMAIN]
verify return:1

Reload LDAPS cert without reboot: ldaps-reload.txt, called from ldaps-cert.ps1 with: “ldifde -i -f ldaps-reload.txt”

changetype: modify
add: renewServerCertificate
renewServerCertificate: 1







Active Directory LDAPS and Let’s Encrypt it’s possible!
